High Speed Electric Car Lingbox Z

Name: High Speed Electric Car Lingbox Z
Brand: LINGBOX
Rating: 5.0 (43 reviews)

Model:
Lingbox Z
Brand:
LINGBOX

Availability:

Quantity:



Inquire Add to Basket

Product Description

Length (mm)	3584
Width (mm)	1475
Height (mm)	1666
Wheel base (mm)	2455
Front Track (mm)	1300
Rear Track (mm)	1295
Min. Ground Clearance (mm)	170
Body Structure	Hatchback
Vehicle Door Number (s)	5
Vehicle Seat Number (s)	5
Trunk Capacity (L)	180L (Fold down the rear seats more than 400L)
Curb Weight (kg)	992
Standard Voltage (V)	300.8
Max. Climb Capacity (%)	≥20
Min. Turning Radius (m)	-
Vehicular Noise (db)	≤73
Max. speed (km/h)	121
0-50km/h Acceleration (s)	≤7
50-80km/h Acceleration (s)	≤9
Model of Electrical Machinery	PMSM
Motor Power (kW, Rated/Peak)	45
Max. Torque of Motor (N.m, Peak)	130
Motor Site	Fronting
Type of Battery	LFP
Driving Mileage (km)	400 (CLTC)
Battery Capacity (kWh)	38
100km Power Consumption (kWh/100km)	10.4
Capacity Density of Battery (Wh/kg)	139
Total Weight of Battery (kg)	231
AC Normal Charging	○GB ●CCS2 Charging power: 6.6kW
Normal Recharge Time (h)	11
Rapid Recharge Time (h)	0.67
Electric Quantity for Rapid Recharge (%)	30%-80%
Number of Gear	1
Gear Box Model	Fixed Gearbox
Name of Gear Box	Single speed gearbox
Drive Mode	FF Layout
Front Suspension Type	MacPherson Independent Suspension
Rear Suspension Type	Torsion Beam Semi-Independent Suspension
Boosted Control	EPS
Chassis Structure	Monocoque Body
Front Brake Type	Disc-type
Rear Brake Type	Drum-type
Parking Brake System	Hand Brake
Front Tyre Specification	●165/55 R15
Rear Tyre Specification	●165/55 R15
Spare Tire	●165/55 R15

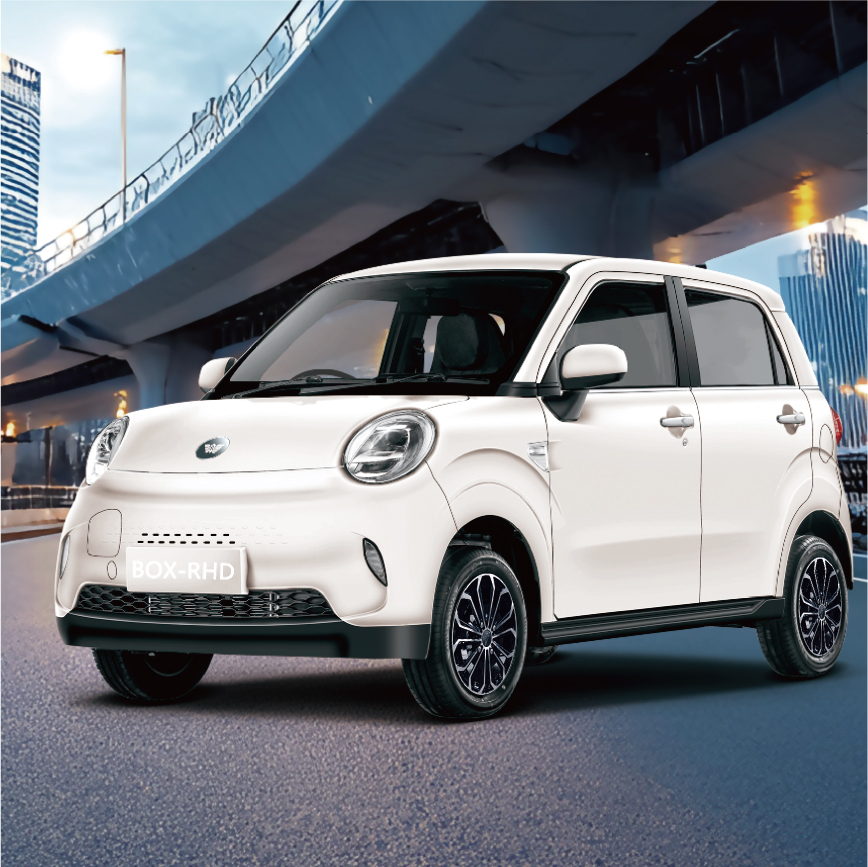

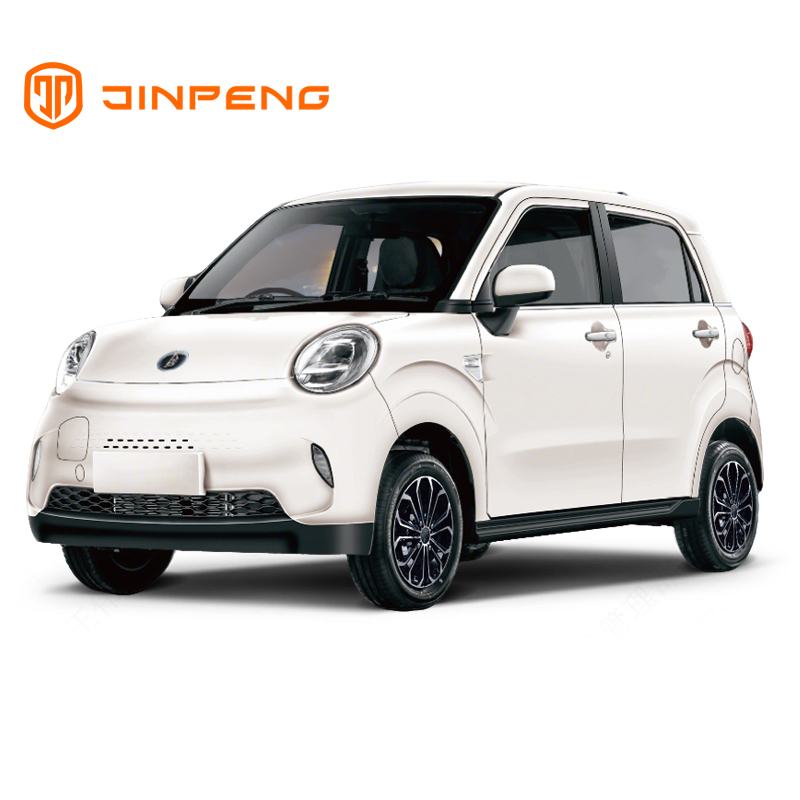

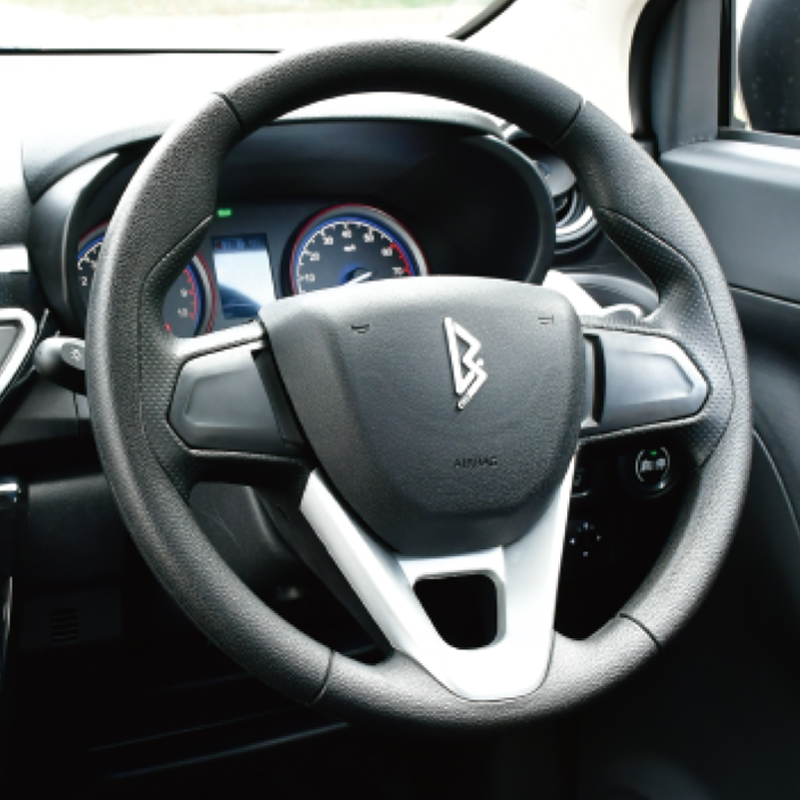

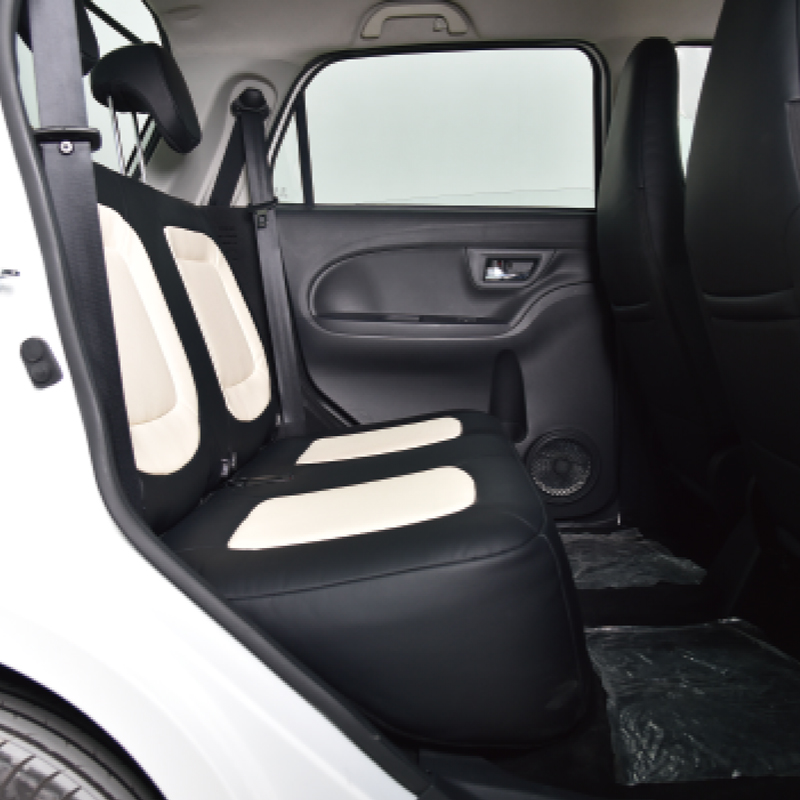

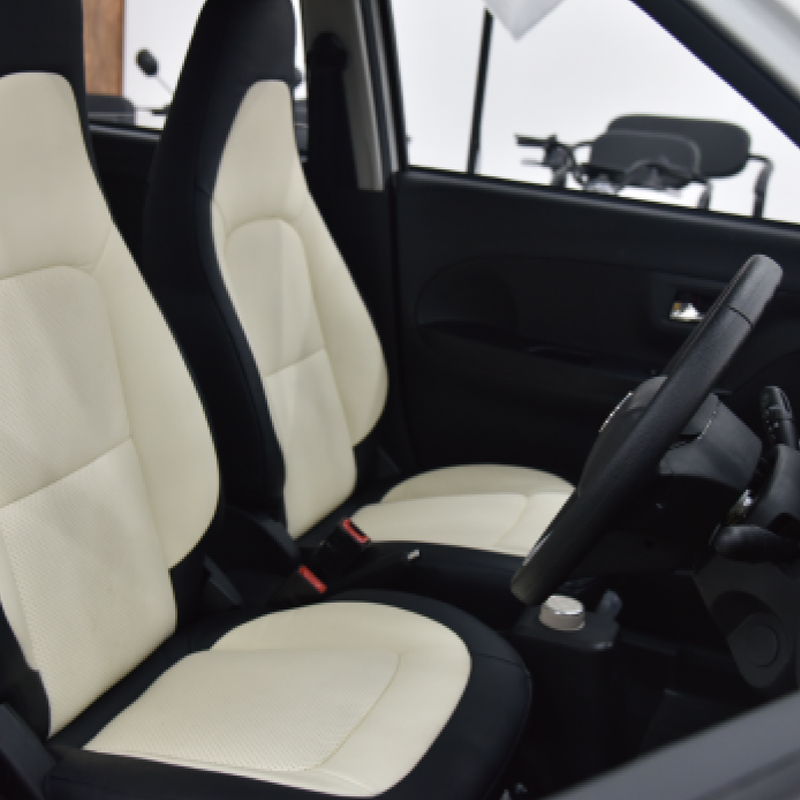

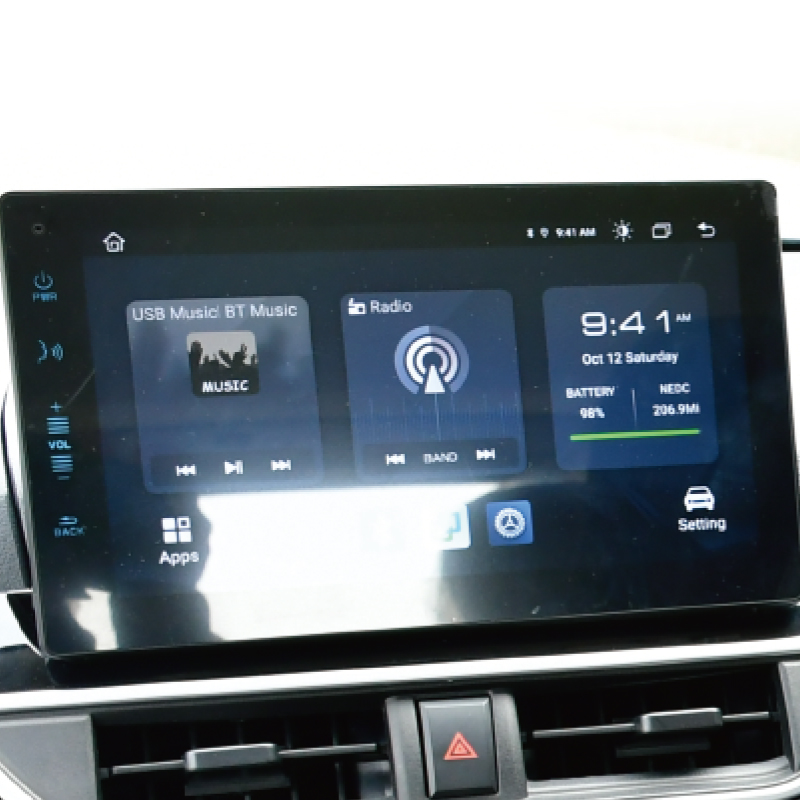

Detailed Photos

FAQ

1. Q: Can I get some samples?
Re: We are honored to offer you samples for quality check.

2. Q: Do you have the products in stock?
Re: No. All products are to be produced according to your order including samples.

3. Q: What's the delivery time?
Re: It usually takes about 25 working days to produce an order from MOQ to a 40HQ container. But the exact delivery time might be different for different orders or at different times.

4. Q: Can I mix different models in one container?
Re: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.

5. Q: How does your factory do regarding quality control?
Re: Quality is a priority. We always attach great importance to quality control from the very beginning to the end of production. Every product will be fully assembled and carefully tested before it's packed for shipment.

6. Q: Do you have after-sale service? What's the after-sale service?
Re: We have oversea after-sale service file for your reference. Please consult the sales manager if needed.

7. Q: Will you deliver the right goods as ordered? How can I trust you?
Re: Yes, we will. The core of our company culture is honesty and credit. Jinpeng has become a trusted partner of dealers since its establishment.

8. Q: What is your payment?
Re: TT, LC.

9. Q: What are your shipping terms?
Re: EXW, FOB, CNF, CIF.
